DLI JOULE-Series 6/750W DE Dimmable

Redefining The Light Fixture

Dutch Lighting Innovations is an innovative company which develops and manufactures supplemental lighting systems for the global greenhouse industry. Our products are made with components of the highest quality and reliability and are very easy in maintenance.

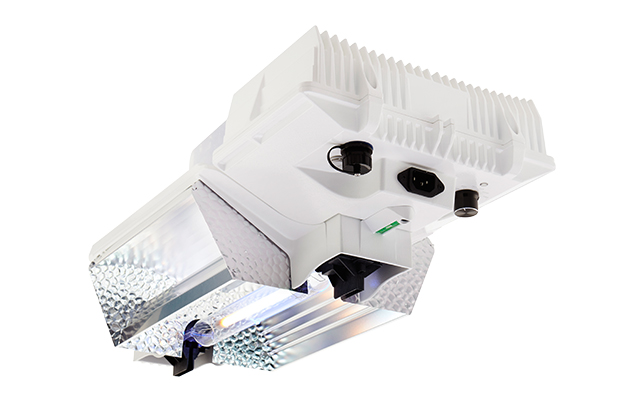

The new Dutch Lighting Innovations JOULE-Series 6/750W fixture is designed for the DLI Horticulture Plus 6/750W DE Lamp. This lamp is optimized by DLI to increase photosynthesis efficiency in flowering plants. By enhancing the gas chemistry of the lamp the output maintains high life.

Specifications

• Extra Low-Profile Housing (Ideal for low ceilings)

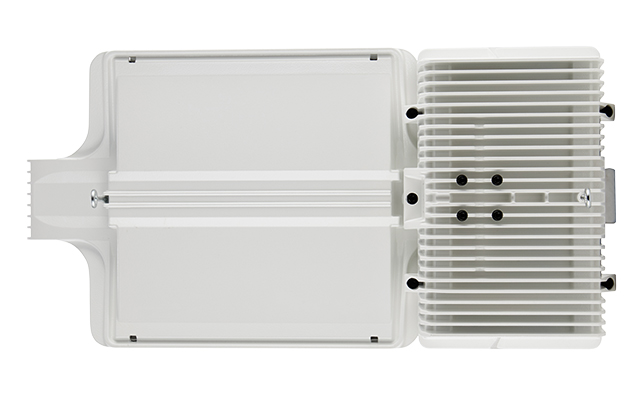

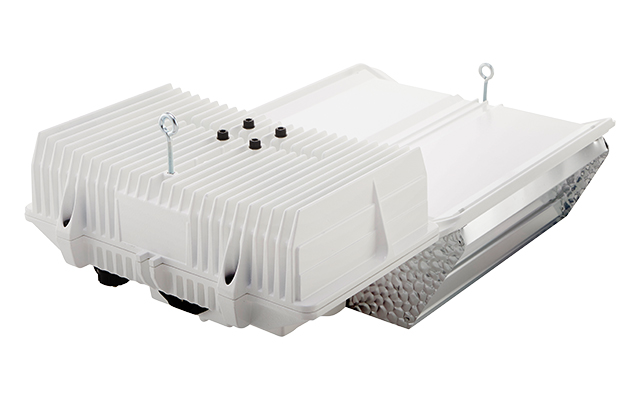

• Improved Heatsink (Increased Driver Efficiency)
• LED Indicator (Status & Error Diagnostics)
• IP65 Controller Connection (Plug & Play with DLM-Series)
• Gore-Tex Plug (Ventilation Plug)
• Driver efficiency> 95%.
• Built in Spirit Level (Achieve Perfectly Even Light Spread)
• Replaceable reflector and lamp

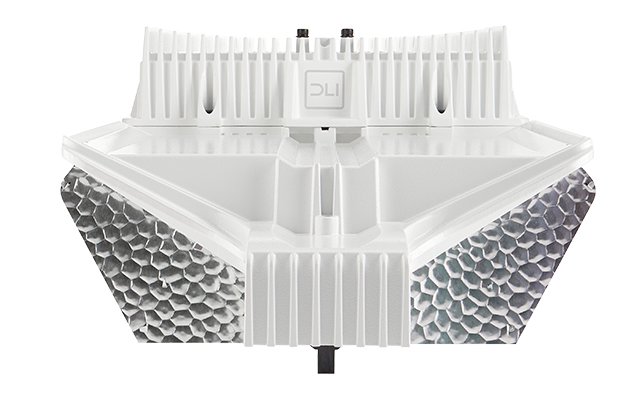

• Improved reflector

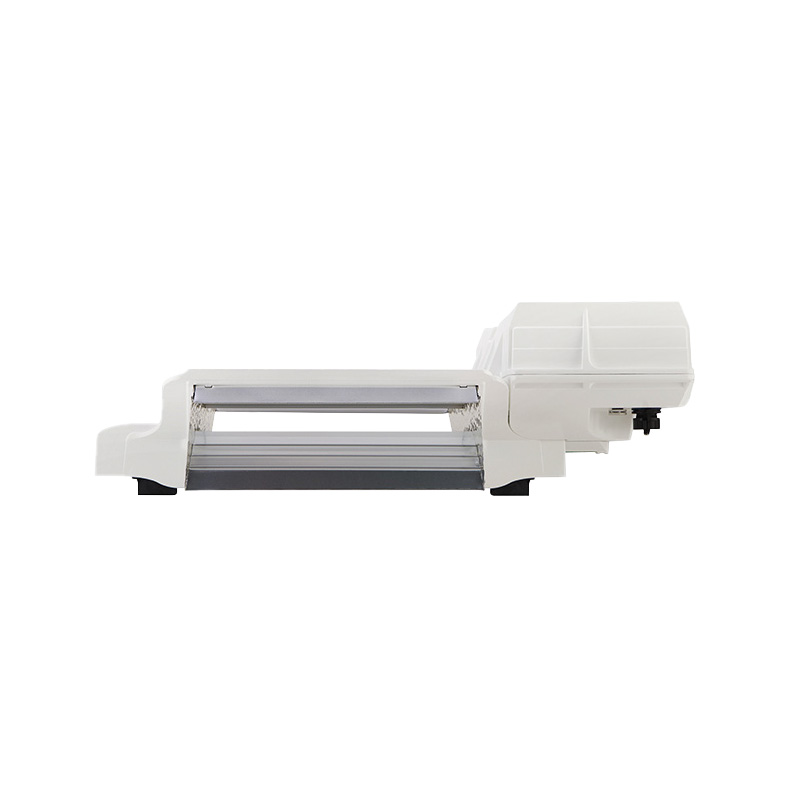

Low-profile housing.

Due to the unique position of the housings, this fixture is extremely suitable for low-ceiling rooms where height is a problem. It is also ideal in greenhouses because of less sunlight interception.

Built-in spirit level.

This fixtures has a built-in spirit level to achieve perfect even light spread across your room or greenhouse.

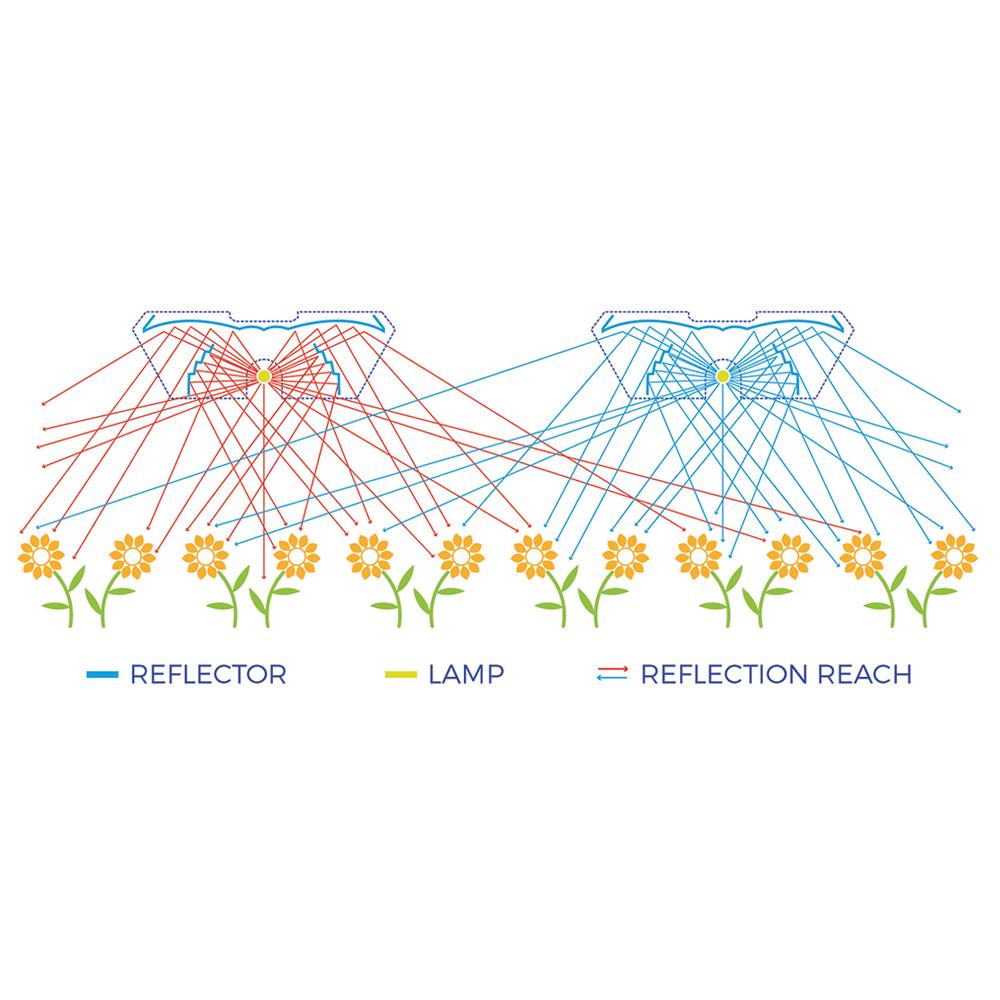

Superior light spread due to special manufacturing.

Efficiency and uniformity have been the main focus in the development of this reflector. Each ray of light coming from the lamp will either be transmitted directly to the plants or will hit the aluminum reflector once to get the highest possible efficiency of >95%.

Time for Improvement

For Decades growers have settled for lighting options that are not 100% tailored for their use and crop. Grow light manufacturers are always trying to appease the mass populations of growers, rather than honing in on exactly what they need for optimal performance, yields, and most important quality.

The engineering principles behind the DLI Open Reflector are a culmination of over a decade of research and development. The team works with a ranging group of some of the best horticulturists around the globe; each who specialise in plant and varietal specific production processes for the ornamental, and commercial flower market. Dutch Lighting Innovations has allowed these groups a new level of consistency, reliability, and quality unparalleled in the niche world of growing the best flowers and plants on Earth!

How it works!

The DLI reflectors are manufactured to have the highest possible total reflectance at all wavelengths from 400 to 700 nm giving excellent PAR rendition. The integrated hemispherical reflectance is over 95% with an absence of iridescence colours in the louvre.

The DLI reflectors are made from an electrochemically brightened high purity aluminium substrate coil, and start with an anodised base coat which gives a hard support to minimize abrasion damage. The material is then treated under vacuum with specially developed processes to maximise coating adhesion and is vacuum coated with a super pure reflection layer of 99.99% pure aluminium.

These reflection layers are overlaid with a dual layer oxide system tuned for maximum visible reflection enhancement. This serves to increase the overall reflectivity provided by the metallic layers and adds protection against damage.

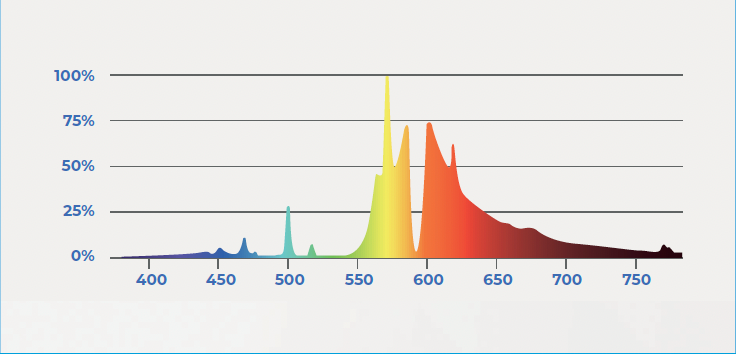

Spectrum
