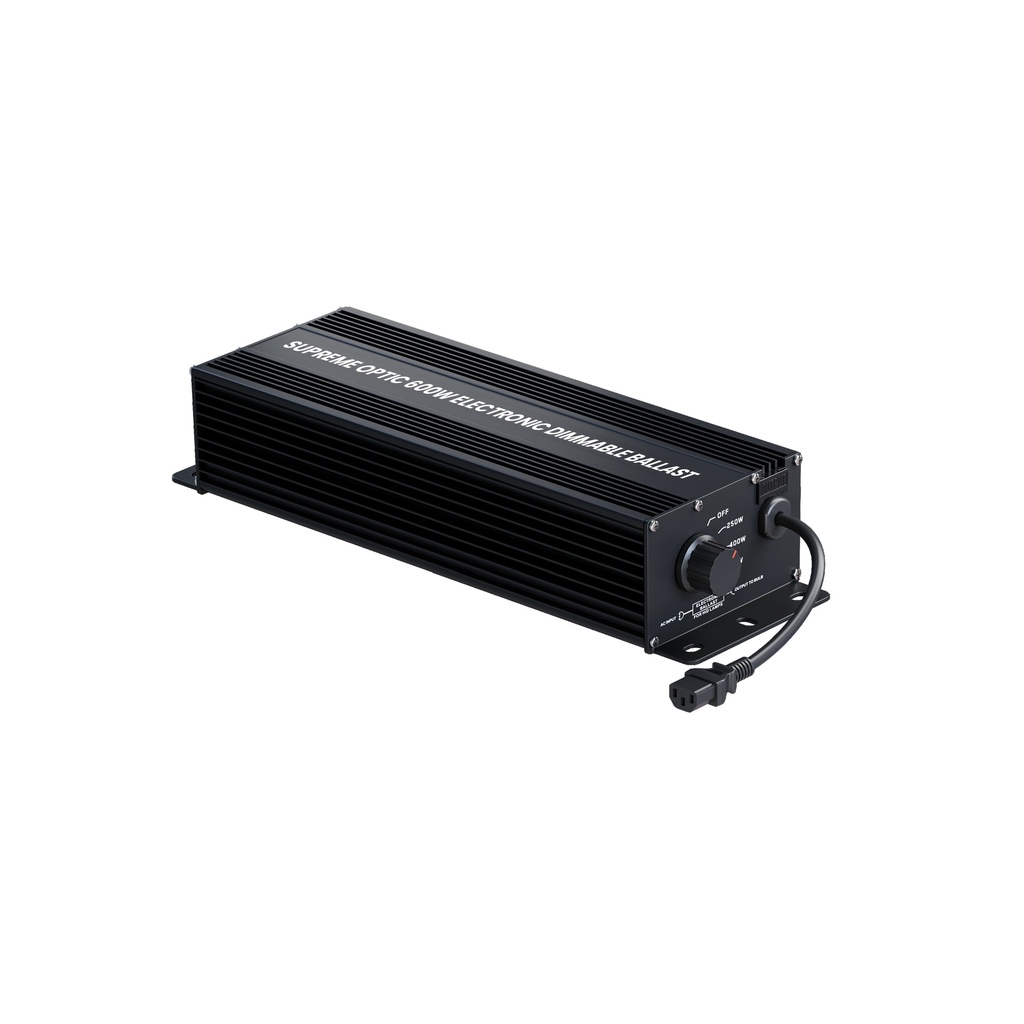

Supreme Optic 600W Electronic Dimmable HPS Ballast
Suitable for High Pressure Sodium, Metal Halide or LED lamps.
- Minimum starting voltage: 165Vac
- Starting time: 5 Max - Pulse voltage: 4-5.5kv
- Lamp type: HPS 600W / MH 600W- Lamp Voltage: 110V
-(HPS) /110V-(MH)
- Lamp current: 5.5A
- Lamp wattage: 600W
- Housing Temperature: 70°C Max
- IP Rating: lp54
- Ambient Temperature: -25-50 °C
- Package Size: 330*160*70mm- N.W: 1.6kg
Specifications
Input parameter
- Input voltage: 230Vac / 240Vac
- Input wattage I 600W HPS Lamp: 628W (100%)@2.73A / 626W (100%)@2.61A
- Input wattage I LED Fixture: 710W (100%)@3.08A / 720W (100%)@3.13A
- Frequency: 50/60 HZ
- Input power factor >0.98
Output parameter
- Related frequency: 60-170KHZ
- Dimming option: 250W, 400W, 600W, 690W
- Open circuit voltage: 400V
- Crest ratio: 1.7CF
- Efficiency: >93%
- Output plug : IEC Female Plug
- Output cable: VDE H05VV-F 3*1.0mm2
